DYNAMIC SOLUTIONS ELECTRO-DYNAMIC SHAKERS cover a wide range of force output from 200 to 40,000 lbf. for testing small to large payloads.  The shakers are supplied with digital switching power amplifiers. In addition to our line of electro-dynamic shakers, Dynamic Solutions also offers PERMANENT MAGNET AND TABLE TOP DESIGNS for shaker requirements from 40 to 600 lbf.  These systems support a variety of applications including Automotive, Military, Aerospace, Aviation, Medical, Telecommunications and Electronics.

DYNAMIC SOLUTIONS Electro-Dynamic Shakers provide exceptional performance and proven reliability in hundreds of installations. DYNAMIC SOLUTIONS provides state-of art designs that include the following features:

• ALL 100% AIR-COOLED up to 16,000 lbf
• NEW Water-Cooled Sahkers up to 40,000 lbf!
• High First Resonance Frequency
• Every system is thoroughly tested in full compliance with ISO 5344
• Digital switching amplifiers utilize state-of-the-art IGBT technology
• FULL 3 year parts warranty (including armature and field coils) on every system!

And we welcome custom applications.

CLICK HERE TO DOWNLOAD PRODUCT SPECIFICATIONS.

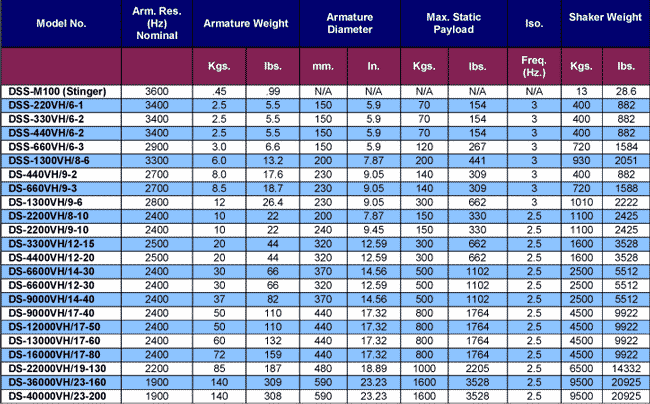

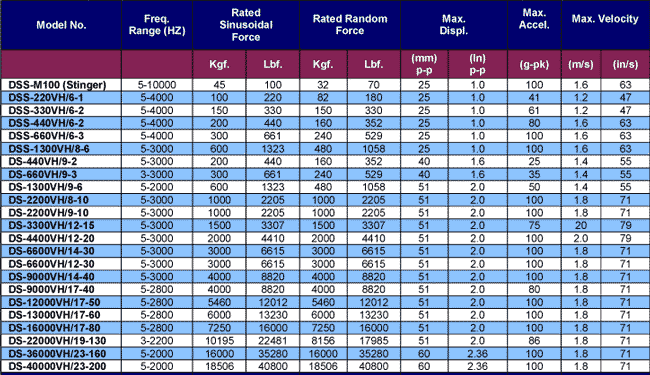

Shaker System Specifications

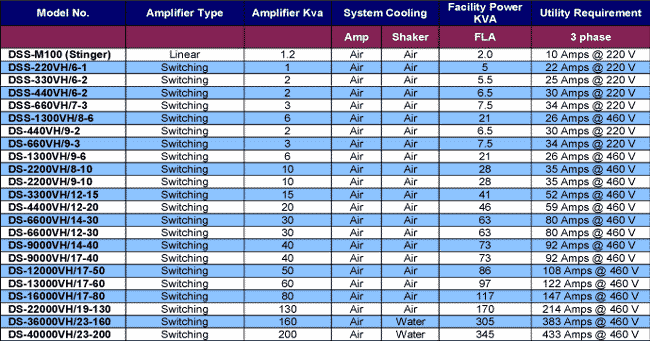

Facility Requirements

PERMANENT MAGNET SHAKERS

Small Permanent Magnet Systems	VTS 40	VTS 65	VTS 80	VTS 100		VTS 150
LOW COST, LOW FORCE VIBRATION SYSTEMS
Peak Sine	40 lbf	65 lbf	80 lbf	100 lbf		150 lbf
Amplifier Cooling Fan	INCLUDED
Vibrator Cooling Fan	N/A	INCLUDED
Stroke (p-p)	.75"	.75"	.75"	.75"		1.0"
Velocity	35 ips	70 ips	80 ips	100 ips		70 ips
Max. Acceleration (bare table)	60g	100g	115g	150g		210g
Armature Weight	.66 lbs	.66 lbs	.70 lbs	.66 lbs		.71 lbs
Suspension Stiffness	40 lbs./in (options available for larger payloads)
First Major Resonance	4500 Hz	4500 Hz	7000 Hz	4500 Hz		5400 Hz
Frequency Range	2-6500 Hz					2-8500 Hz
Nominal Impedance	6 Ohms
Power Requirements	4A/120V 2A/240V	14A/120V 8A/240V	18A/120V 10A/240V		18A/120V 10A/240V	28A/120V 15A/240V
